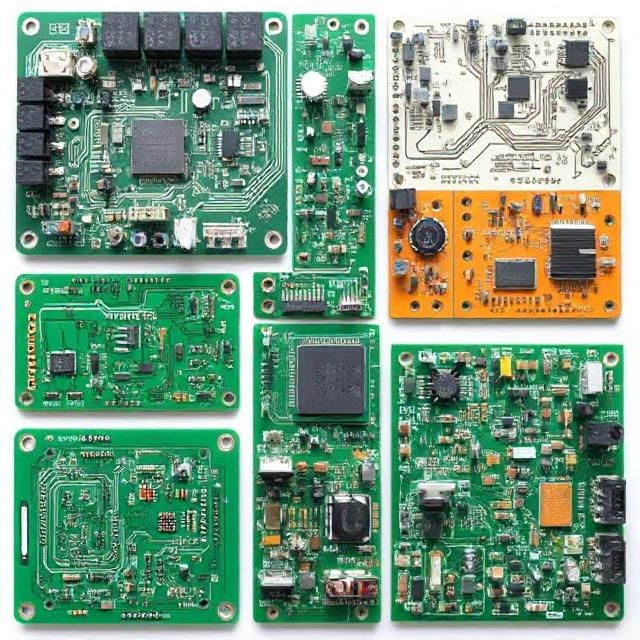

5 Types of Circuit Board Assembly
Table of Contents:
- Introduction to Circuit Board Assembly
-
Classification by Assembly Technology
- Surface Mount Technology (SMT)
- Through-Hole Technology (THT)
- Mixed Assembly Technology (SMT + THT)
-
Classification by Component Type
- Single-Sided Assembly
- Double-Sided Assembly
- Multilayer Board Assembly
-
Classification by Degree of Automation
- Fully Automatic Assembly
- Semi-Automatic Assembly
- Manual Assembly
-
Classification by Soldering Process
- Reflow Soldering
- Wave Soldering
- Selective Soldering
-
Special Assembly Types
- Flexible Circuit Board Assembly (FPC Assembly)
- High-Density Interconnect Board Assembly (HDI Assembly)
- High-Temperature Circuit Board Assembly
- Wintech: Tailored PCB Solutions for Your Needs
- Frequently Asked Questions (FAQs)
- Conclusion
Introduction to Circuit Board Assembly
Circuit board assembly (CBA) is an essential part of the electronics manufacturing process, where the various components of a circuit board, such as resistors, capacitors, and microchips, are connected to the board itself to create functional electronic devices. The method of assembly used depends on factors like the complexity of the board, the number of components, and the required performance.
In this article, we will explore the different types of circuit board assembly, ranging from the technology used to the degree of automation involved. We'll also dive into specialized assemblies like flexible and high-density interconnect boards, and highlight the services offered by Wintech, a trusted provider of customized PCB assembly solutions.
Classification by Assembly Technology
Assembly technology plays a significant role in determining the efficiency, quality, and cost of a circuit board. There are three main types of assembly technologies: Surface Mount Technology (SMT), Through-Hole Technology (THT), and Mixed Assembly Technology.

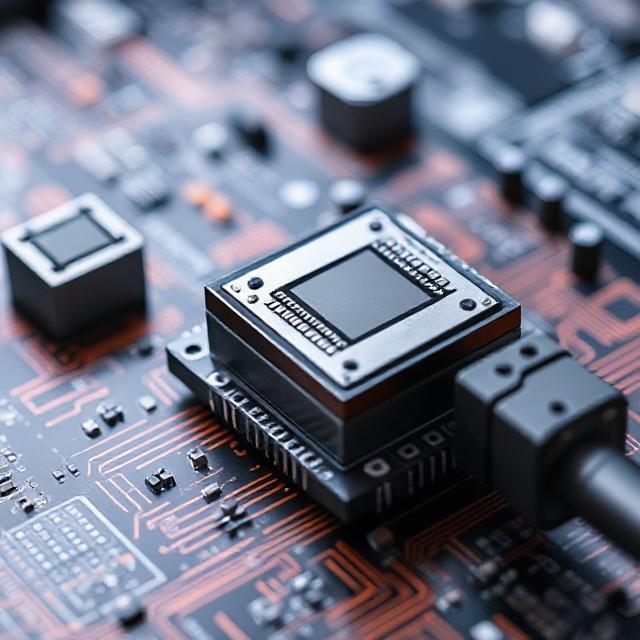

Surface Mount Technology (SMT)
_96163.jpg "Surface Mount Technology (SMT)")
Surface Mount Technology (SMT) is the most widely used assembly method in modern electronics manufacturing. In SMT, components are directly mounted on the surface of the printed circuit board (PCB) rather than through holes.
Advantages of SMT:
- Compact design: SMT allows for smaller, lighter devices with higher component density.
- Faster production: The use of automated machinery makes SMT faster and more cost-effective.
- Increased reliability: With fewer mechanical connections, SMT components have a lower risk of failure.
Disadvantages of SMT:
- Component size limitations: While SMT is great for small components, it might not be suitable for larger parts that require through-holes.
- Complexity in repair: If an error occurs, the small components are difficult to repair manually.
Through-Hole Technology (THT)
Through-Hole Technology (THT) involves inserting components with leads (pins) into holes drilled in the PCB and then soldering them on the opposite side. This method has been in use for many decades.
Advantages of THT:
- Stronger connections: THT provides a more durable and mechanically strong connection, making it suitable for high-stress applications.
- Larger components: THT is ideal for larger components, such as transformers and capacitors, that cannot be mounted via SMT.
Disadvantages of THT:
- Larger size: THT components take up more space, limiting miniaturization.
- Slower production: Manual placement of components makes THT slower and less efficient compared to SMT.
Mixed Assembly Technology (SMT + THT)
Mixed Assembly Technology combines the advantages of both SMT and THT. For example, smaller components can be mounted using SMT, while larger, more robust components are attached using THT.
Advantages of Mixed Assembly:
- Flexibility: This approach allows for a variety of components to be used on the same board.
- Optimized performance: It balances size, strength, and functionality.
Disadvantages of Mixed Assembly:
- Complexity: Mixed assembly requires more advanced equipment and setup, which can increase costs.
Classification by Component Type
The component type used in a circuit board assembly can also influence the manufacturing process. There are three main classifications based on component type: single-sided, double-sided, and multilayer board assembly.
Single-Sided Assembly
Single-sided assembly refers to a PCB where all components are mounted on one side of the board. This is the simplest and most cost-effective option.
Advantages:
- Cost-effective: Fewer components and a simpler design make it cheaper.
- Ease of manufacturing: Since only one side of the PCB is used, it's easier to manufacture.
Disadvantages:
- Limited space: The design options are restricted by the use of only one side of the board.
Double-Sided Assembly
Double-sided assembly involves placing components on both sides of the PCB. This approach is commonly used for medium-complexity circuit boards.
Advantages:
- Increased component density: Double-sided assembly allows more components to be placed on the same board, making it ideal for more complex designs.
- Compact design: With components on both sides, the board size can be minimized.
Disadvantages:
- Higher cost: Requires additional manufacturing steps, increasing the overall cost.
- Complexity in design: Careful planning is needed to ensure both sides are effectively utilized.
Multilayer Board Assembly
Multilayer board assembly is used for complex, high-performance circuits. This involves stacking multiple layers of PCBs, allowing for a large number of components to be incorporated in a compact space.
Advantages:
- High component density: Multilayer boards provide the most compact designs for intricate circuit layouts.
- Improved performance: The use of multiple layers allows for better signal integrity and reduced interference.
Disadvantages:
- Complexity and cost: Multilayer assembly is expensive and requires advanced manufacturing techniques.
- Longer production time: The multi-step process can slow down production.
Classification by Degree of Automation
The degree of automation used in circuit board assembly can also impact the speed and efficiency of the process. The three main classifications are fully automatic, semi-automatic, and manual assembly.
Fully Automatic Assembly
Fully automatic assembly involves machines that perform every step of the process, from component placement to soldering and testing.
Advantages:
- High efficiency: Fully automatic systems are fast and accurate.
- Consistency: Automated systems reduce the risk of human error and improve product quality.
Disadvantages:
- High initial investment: The cost of setting up fully automated systems can be high.
- Limited flexibility: Automated systems may struggle with more complex or custom designs.
Semi-Automatic Assembly
Semi-automatic assembly uses both manual labor and automated systems to complete the assembly process.
Advantages:
- Cost-effective: It offers a balance between speed and cost.
- Flexibility: Semi-automatic systems can handle a variety of designs.
Disadvantages:
- Lower speed: Semi-automatic systems are not as fast as fully automated systems.
- Human error: Some reliance on manual labor means the risk of error is higher.
Manual Assembly
Manual assembly involves workers placing components and performing all other assembly tasks by hand.
Advantages:
- High flexibility: Manual assembly can accommodate small batches and complex, custom designs.
- Low upfront cost: It requires less investment in automated machinery.
Disadvantages:
- Slow production speed: Manual processes take longer, making it less suitable for large-scale production.
- Higher risk of errors: Human labor is more prone to mistakes.
Classification by Soldering Process
Soldering is a critical part of the assembly process, as it ensures that components are securely attached to the PCB. There are several soldering techniques, including reflow soldering, wave soldering, and selective soldering.
Reflow Soldering
Reflow soldering is the most common soldering method used in SMT. The PCB is heated in a reflow oven, causing the solder paste to melt and form strong bonds between the components and the PCB.
Advantages:
- High precision: Reflow soldering allows for fine-pitch components to be soldered accurately.
- Efficiency: The process is fast and can handle large batches.
Disadvantages:
- Limited to certain components: Reflow soldering is mainly used for SMT components and is not suitable for THT components.
Wave Soldering
Wave soldering is typically used for THT components. The PCB is passed over a wave of molten solder, which adheres to the leads of the components.
Advantages:
- Cost-effective for large volumes: Wave soldering is ideal for mass production.
- Strong solder joints: Provides durable connections for through-hole components.
Disadvantages:
- Limited to THT components: This method is not effective for SMT components.
- Requires large equipment: The process requires a soldering wave machine, which is an additional investment.
Selective Soldering
Selective soldering involves using a robotic arm to apply solder only to specific parts of the PCB.
Advantages:
- Precise application: Selective soldering targets specific areas, ensuring the quality of the solder joints.
- Flexibility: Suitable for both SMT and THT components.
Disadvantages:
- Slower process: Selective soldering is slower than wave soldering and is typically used for smaller volumes.
Special Assembly Types
Flexible Circuit Board Assembly (FPC Assembly)
Flexible circuit boards (FPCs) are used in applications where the board needs to bend or flex. FPC assembly is used for wearable devices, mobile phones, and other compact electronics.
High-Density Interconnect Board Assembly (HDI Assembly)
HDI Assembly is used for high-performance applications where space and signal integrity are critical. It allows for higher component density and better electrical performance.
High-Temperature Circuit Board Assembly
High-temperature circuit board assemblies are used in industries where the device will be exposed to extreme conditions, such as automotive, aerospace, and industrial applications.
Wintech: Tailored PCB Solutions for Your Needs
At Wintech, we offer tailor-made solutions for all your PCB assembly needs. Our services span from high-precision PCB design to low- and mid-volume mass production, and we specialize in complex, high-difficulty, and large-size boards.
Our services include:
- PCB Design & Layout
- PCB Manufacturing
- PCB Assembly & PCBA SMT
- Quick Turn Fast PCB Prototype Assembly
- New Product Introduction (NPI)
- Plastic Molding
- Metal Precision Machining
With years of experience and a track record of serving top global enterprises, Wintech is a trusted partner for high-performance, reliable PCB assembly.
Frequently Asked Questions (FAQs)
1. What is the difference between SMT and THT?
- SMT places components directly onto the surface of the PCB, while THT involves inserting components through holes and soldering them on the other side. SMT is faster and more compact, but THT is used for larger, more robust components.
2. What are the benefits of using multilayer boards?
- Multilayer boards allow for high component density, reduced interference, and more compact designs, making them ideal for advanced electronics applications.
3. How do I choose the right soldering technique for my PCB?
- Choose reflow soldering for SMT components, wave soldering for THT components, and selective soldering for mixed designs or when high precision is needed.
Conclusion
Selecting the right assembly method for your circuit board depends on various factors such as the technology used, component type, automation, and soldering process. By understanding these classifications, you can make informed decisions and choose the best solution for your needs. Whether you're looking for a flexible circuit board or a high-density interconnect assembly, Wintech offers tailored PCB solutions for every requirement.
