Types of PCB Soldering: A Comprehensive Guide to Techniques and Applications

Table of Contents

1. Introduction
2. What is PCB Soldering?
3. Different Types of PCB Soldering
   • 3.1 Hand Soldering
   • 3.2 Wave Soldering
   • 3.3 Reflow Soldering
   • 3.4 Selective Soldering
   • 3.5 Laser Soldering
   • 3.6 Vacuum Soldering
4. Choosing the Right PCB Soldering Technique
5. Why PCB Soldering is Crucial in Electronics Manufacturing
6. Wintech: Your Trusted Partner for PCB Soldering and Electronics Manufacturing
7. Frequently Asked Questions (FAQs)
8. Conclusion

1. Introduction

In the world of electronics manufacturing, PCB soldering is one of the most crucial processes for assembling components onto a printed circuit board (PCB). Whether you're working on a small consumer electronic device or a complex industrial system, soldering is essential for creating strong, reliable electrical connections. There are various soldering techniques used in PCB assembly, each suitable for different production volumes, component sizes, and design complexities.

This article will explore the different types of PCB soldering, their advantages, and how to choose the right technique for your specific needs. We will also discuss why PCB soldering plays a vital role in the overall performance and reliability of electronic products.

2. What is PCB Soldering?

PCB soldering refers to the process of joining electronic components to a PCB using a melted metal alloy (solder). Soldering creates electrical and mechanical connections between the components and the PCB. The process involves heating the solder to its melting point, allowing it to flow over the connection pads of both the component and the PCB, and then cooling it to form a solid bond.

There are several methods of PCB soldering, depending on the type of components, production volume, and precision required. The main objective of PCB soldering is to ensure that the components are securely attached, ensuring electrical continuity and mechanical strength, all while preventing any damage to the sensitive components or traces on the PCB.

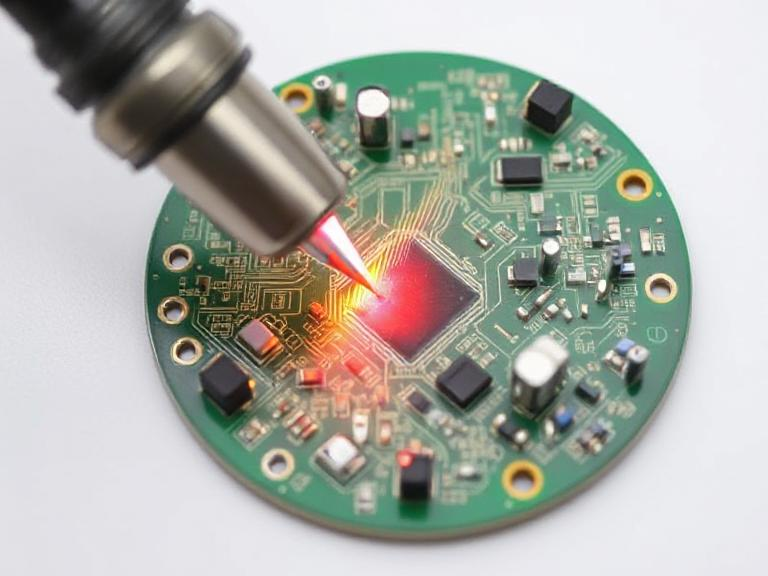

3. Different Types of PCB Soldering

3.1 Hand Soldering

Hand soldering is the most basic and traditional soldering method. It is primarily used for low-volume production, prototyping, or when dealing with small or delicate components. In this method, a soldering iron with a fine tip is used to manually heat the solder and apply it to the connection points of the component and the PCB.

• Applications: Prototyping, small batch production, repair work, soldering of through-hole components, or components with unusual shapes.
• Advantages: High flexibility, low initial cost, and suitability for small runs.
• Disadvantages: Time-consuming, labor-intensive, and prone to human error, which can lead to inconsistent solder joints.

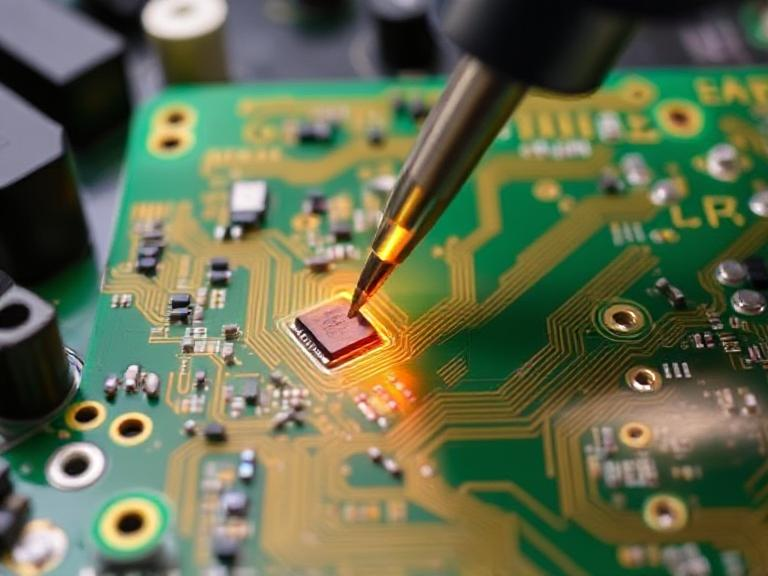

3.2 Wave Soldering

Wave soldering is an automated process used to solder components on a PCB in high-volume production environments. In wave soldering, the PCB is passed over a wave of molten solder, which then adheres to the component leads, creating the necessary electrical connections.

• Applications: Large-scale manufacturing of through-hole components such as connectors, resistors, and capacitors.
• Advantages: Fast and efficient, especially for high-volume production runs, with minimal human intervention.
• Disadvantages: Limited to through-hole components; does not work well with fine-pitch components, which are better suited for reflow soldering.

3.3 Reflow Soldering

Reflow soldering is the most common technique for surface-mount technology (SMT) components, which are widely used in modern electronic devices. In reflow soldering, a solder paste is applied to the pads on the PCB, and components are placed on the paste. The PCB is then heated in a reflow oven, causing the solder to melt and form solid connections between the PCB and the components.

• Applications: SMT components, high-density circuit boards, consumer electronics, and communication devices.
• Advantages: Ideal for high-volume production, capable of soldering fine-pitch and small components, offers precise control of the soldering process.
• Disadvantages: Requires specialized equipment (reflow oven), not suitable for large through-hole components.

3.4 Selective Soldering

Selective soldering is a hybrid method that combines elements of both hand soldering and wave soldering. It is used when through-hole components are placed on surface-mount PCBs or when the use of wave soldering is not ideal due to specific design constraints. Selective soldering systems use a robotic arm to apply solder only to the necessary areas of the PCB, ensuring that only the required parts of the PCB are soldered.

• Applications: Soldering both SMT and through-hole components on the same PCB, particularly for complex designs or low-volume production.
• Advantages: More precise than wave soldering, can handle both SMT and through-hole components.
• Disadvantages: Requires specialized equipment, can be slower than wave soldering for large batches.

3.5 Laser Soldering

Laser soldering is a highly advanced and precise soldering technique where a laser beam is used to heat the solder and components. This process is typically used for delicate components or high-precision applications where other methods may not provide the necessary accuracy.

• Applications: Precision electronics, aerospace, medical devices, and complex assemblies.
• Advantages: Extremely precise, minimal thermal stress on components.
• Disadvantages: High equipment cost, complex setup, and limited use in high-volume production.

3.6 Vacuum Soldering

Vacuum soldering involves soldering components in a vacuum environment to remove air and moisture, which helps reduce defects caused by oxidation and improves the quality of the solder joints. This method is particularly useful for sensitive components that are prone to damage from environmental conditions.

• Applications: High-precision applications, space, and military electronics.
• Advantages: Eliminates oxidation, improves solder joint quality, ideal for high-reliability applications.
• Disadvantages: Expensive setup, slower compared to other soldering techniques.

4. Choosing the Right PCB Soldering Technique

The choice of soldering technique depends on several factors, such as the type of components, production volume, cost, and precision requirements. Here are some key considerations when selecting the right soldering method for your project:

• Component Type: Use reflow soldering for SMT components, while hand soldering or wave soldering may be better suited for through-hole components.
• Production Volume: Reflow and wave soldering are ideal for high-volume production, whereas hand soldering is better suited for small batches or prototyping.
• Precision and Complexity: For high-precision or complex designs, selective, laser, or vacuum soldering may be necessary.
• Cost Considerations: Automated methods like wave soldering and reflow soldering may require significant upfront investment but are more cost-effective for large-scale production.

5. Why PCB Soldering is Crucial in Electronics Manufacturing

PCB soldering is a cornerstone of electronics manufacturing, as it ensures the electrical connectivity and mechanical stability of components on the PCB. The quality of the solder joints directly affects the performance and reliability of the final product. Improper soldering can lead to poor connections, component failures, and even device malfunctions. Therefore, choosing the right soldering technique and maintaining high-quality standards during the process are essential to ensure the success of the manufacturing process.

• Reliability: High-quality solder joints are critical for the overall reliability and functionality of the electronic device.
• Efficiency: Proper soldering techniques help streamline the assembly process, reducing the chances of defects and minimizing rework.
• Cost Control: By selecting the right soldering method, manufacturers can reduce labor costs, prevent defects, and improve throughput.

6. Wintech: Your Trusted Partner for PCB Soldering and Electronics Manufacturing

Wintech is a leading provider of turnkey solutions in PCB design, manufacturing, and assembly for the electronics industry. With over 10 years of experience, Wintech offers a comprehensive range of services, including high-precision PCB layout, PCB assembly (PCBA), SMT assembly, and turnkey product manufacturing. Wintech’s solutions are trusted by some of the world’s top 500 enterprises, and they specialize in high-mix, low to mid-volume production.

• PCB Design & Layout
• PCB Manufacturing
• PCB Assembly & PCBA SMT
• Quick Turn Fast PCB Prototype Assembly
• New Product Introduction (NPI)
• Plastic Molding
• Metal Precision Machining

Wintech ensures the highest standards of quality and reliability in every step of the production process, offering fast lead times and tailored solutions to meet the unique needs of its customers.

7. Frequently Asked Questions (FAQs)

1. What is the difference between reflow soldering and wave soldering?

Reflow soldering is used for surface-mount components and involves heating solder paste in a reflow oven, while wave soldering is used for through-hole components, where the PCB is passed over a wave of molten solder.

2. Can I use hand soldering for mass production?

Hand soldering is ideal for small batches, prototyping, or repairs. For mass production, automated methods like wave or reflow soldering are more efficient and cost-effective.

3. Is PCB soldering dangerous?

PCB soldering involves the use of heat and sometimes chemicals, so safety precautions, such as proper ventilation, protective gear, and handling guidelines, should always be followed to prevent burns or exposure to toxic fumes.

8. Conclusion

PCB soldering is an integral process in the manufacturing of electronic products, from consumer electronics to industrial machinery. The choice of soldering technique, whether it’s hand soldering, wave soldering, reflow soldering, or any of the other methods, depends on the project’s specific requirements. For high-quality and efficient electronics manufacturing, Wintech provides reliable, state-of-the-art solutions, ensuring that every PCB is assembled with precision and care.
