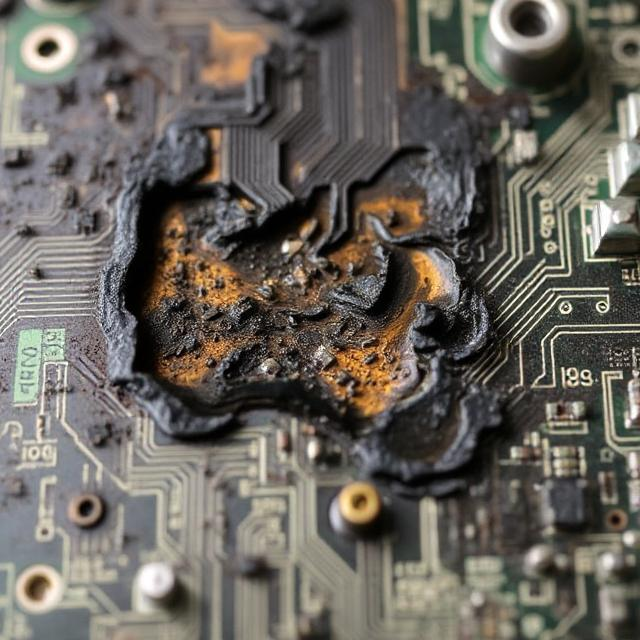

Can a Burnt Circuit Board Be Repaired? A Comprehensive Guide

Circuit boards are essential to modern electronics, but they can suffer damage due to overheating, electrical faults, or component failures. When a printed circuit board (PCB) burns, many wonder: Can it be repaired? The answer depends on the severity of the damage, but in most cases, burnt circuit boards can be fixed with the right techniques.

This guide explores the causes of PCB burns, repair techniques, and when replacement is necessary. If you are involved in electronics manufacturing, PCB repair, or prototyping, this article will help you understand how to handle burnt circuit boards effectively.

Table of Contents

1. Introduction
2. Common Causes of Burnt Circuit Boards
3. Assessing the Damage: Can It Be Repaired?
4. Methods for Repairing Burnt PCBs
   • 4.1 Cleaning the Burnt Area
   • 4.2 Repairing Traces and Pads
   • 4.3 Replacing Burnt Components
   • 4.4 Fixing Burnt Substrate
   • 4.5 Using Jumper Wires
5. When Should a Burnt PCB Be Replaced?
6. Preventing PCB Damage
7. Wintech: Your Trusted Partner for PCB Solutions
8. Conclusion
9. Summary Table

Common Causes of Burnt Circuit Boards

Several factors can lead to a burnt PCB, including:

• Overheating: Excessive heat from high-power components can cause PCB materials to burn.
• Short Circuits: Electrical shorts can generate heat and burn the board.
• Component Failure: Faulty resistors, capacitors, or ICs can overheat and damage the PCB.
• Excessive Current Flow: Overloading the circuit leads to overheating and burning.
• Manufacturing Defects: Poor PCB design or assembly can contribute to heat buildup.
• Environmental Factors: Exposure to moisture, dust, or contaminants can accelerate PCB damage.

Assessing the Damage: Can It Be Repaired?

Before attempting a repair, evaluate the severity of the burn. Here’s how:

• Surface Burn: If only the top layer is damaged, the PCB is usually repairable.
• Burnt Traces or Pads: If electrical connections are damaged, repair is possible with rework techniques.
• Severe Burn with Structural Damage: If the board is charred through multiple layers, replacement is often necessary.

Methods for Repairing Burnt PCBs

If the damage is repairable, follow these step-by-step methods:

4.1 Cleaning the Burnt Area

Before any repair, the burnt carbon must be removed to prevent conductivity issues.

Steps:

1. Use a fiberglass pen or abrasive tool to remove burnt material.
2. Clean with isopropyl alcohol (IPA) to remove debris.
3. Dry the area completely before proceeding.

4.2 Repairing Traces and Pads

Burnt traces or pads can break electrical connections, leading to malfunctioning circuits.

Methods to repair:

• Conductive Ink or Epoxy: Apply silver-based conductive ink to restore connectivity.
• Copper Foil Tape: Use adhesive copper foil for larger damaged areas.
• Solder Bridge: Reconnect broken traces using solder and a fine-tip iron.

4.3 Replacing Burnt Components

If the burn originates from a damaged component, replacing it is necessary.

Steps:

1. Desolder the burnt component carefully using a hot air gun or soldering iron.
2. Inspect for damage to nearby traces.
3. Replace with a new, identical component and solder it securely.

4.4 Fixing Burnt Substrate

If the fiberglass PCB substrate is damaged, it must be reinforced.

Methods:

• Epoxy Filler: Use high-temperature epoxy to fill holes and reinforce the board.
• Polyimide Tape: For minor burns, cover the area with heat-resistant polyimide tape.

4.5 Using Jumper Wires

For extensive trace damage, jumper wires can reroute connections.

Steps:

1. Identify the broken circuit.
2. Use a thin insulated wire to bridge the damaged connection.
3. Solder the wire securely at both ends.

When Should a Burnt PCB Be Replaced?

While many burnt PCBs can be repaired, some should be replaced, such as:

• Severe multi-layer PCB burns – Internal layers are impossible to repair.
• Extensive burnt substrate – If more than 20% of the board is affected.
• Compromised structural integrity – If the board is too fragile after cleaning.
• Mission-critical applications – If reliability is crucial, replacement is safer.

Preventing PCB Damage

To avoid future PCB burns, follow these best practices:

✔ Use high-quality PCB materials with proper thermal resistance.
✔ Ensure good heat dissipation using heatsinks, cooling fans, or thermal vias.
✔ Design circuits properly to prevent overloading.
✔ Test components before assembly to avoid faulty parts.
✔ Follow proper soldering techniques to prevent cold solder joints and shorts.
✔ Use protective coatings to prevent environmental damage.

Wintech: Your Trusted Partner for PCB Solutions

If you're dealing with burnt PCBs, faulty designs, or manufacturing defects, Wintech can help.

Why Choose Wintech?

Wintech provides full turnkey PCB solutions for high-mix, low to mid-volume production and has partnered with top global enterprises for years.

Our Services Include:

✔ PCB Design & Layout – High-level, complex PCB designs.
✔ PCB Manufacturing – High-precision PCB production.
✔ PCB Assembly & PCBA SMT – Reliable electronic assembly solutions.
✔ Quick Turn Fast PCB Prototype Assembly – Fast prototyping for new projects.
✔ New Product Introduction (NPI) – Helping businesses bring new electronics to market.
✔ Plastic Molding & Metal Precision Machining – Custom enclosures and components.

Whether you need PCB repair, design improvements, or full-scale production, Wintech is your trusted partner.

Conclusion

Yes, burnt circuit boards can often be repaired, but the feasibility depends on the extent of damage. Minor burns, broken traces, and faulty components can be fixed, but severely damaged PCBs should be replaced.

By using proper repair techniques and preventive measures, you can extend the lifespan of your electronics and reduce costly replacements. If you need expert PCB solutions, Wintech offers comprehensive design, manufacturing, and repair services to meet your needs.

Summary Table

With the right repair techniques and PCB partner, you can restore and maintain your electronics efficiently.
